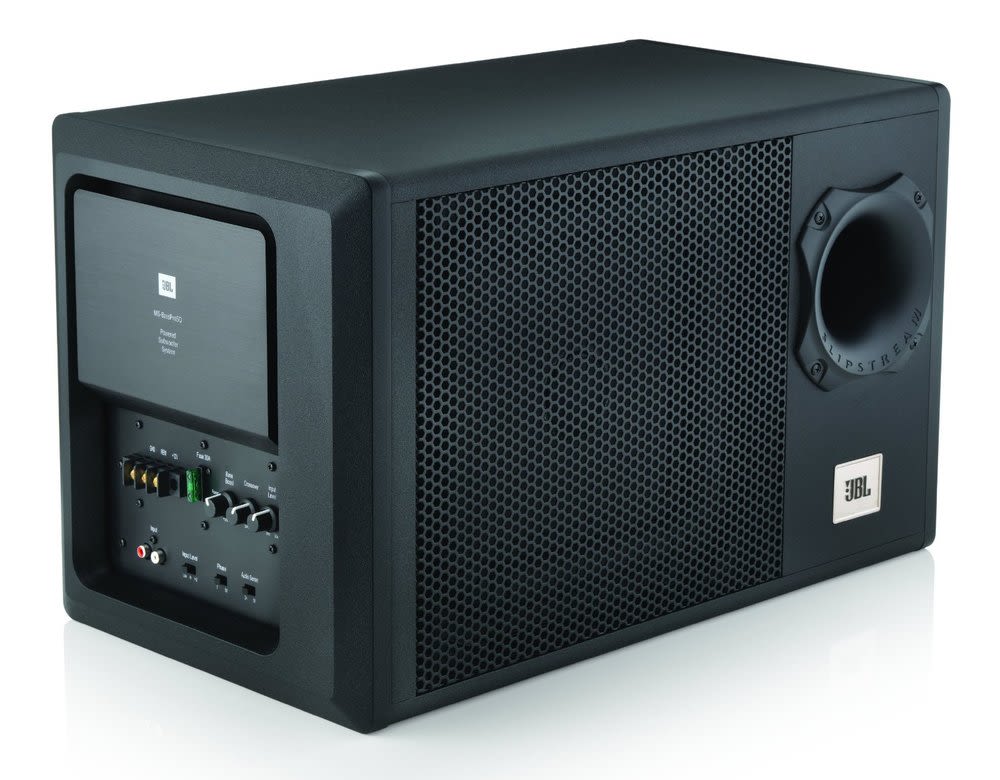

JBL Basspro SQ
Rp3.700.000
Click & Collect Price
Shipping Options:
Check Store Availability
See product availability at nearby stores.
Features JBL Basspro SQ
Square diaphragm measuring 10 "(250 mm)
Closed bass reflex
Slipstream ™ Ports
Innovative, signal input with broad scope
Features that can be activated for signal sensors
Input level, low pass crossover, bass boost and adjustment to the phase
With a black touch in black and rough pattern on the outside
With a black hole grid
Wireless bass control options
Square diaphragm measuring 10 "(250 mm)
Specifically engineered for JBL MS-Basspro SQ, the design of a square diapghragma allows the Cone area to radiate the maximum and output bass for this compact and strong subwoofer system. This is not an off-the-self design. Conversely, JBL technicians combine this exclusive design from the bottom up for this product. Because the square covers the area more than the same circle and width, this woofer diaphragm performs like a larger diaphragm, even though the same compact as a standard 10 -inch cone subwoofer.
Closed bass reflex
Bass-Reflex Ms-Basspro SQ (or "Porting) of enclosure allows the speakers and ports to complement each other at the adjusted frequency, thereby increasing the overall bass output. This also maximizes the effectiveness of a built-in amplifier to provide power in the frequency range Where other cage design requires more power for similar outputs. In short, this gives bass that other powerful devices only want it.
Slipstream ™ Ports
Slipstream port is a special feature of MS-Basspro SQ. This dual flare port eliminates the sound of ventilation even at high sound pressure levels - characteristics that are not possessed by other bass -reflexes. Because air velocity in the port can be substantial when bass output increases, Slipstream design ensures you only hear rich bass and not "chuffing" air out of the port. This is a feature that is also found in high-end JBL speakers and quality studios, and this makes the bass from MS-Basspro SQ quite impressive.
Innovative, signal input with broad scope
MS Basspro SQ (with an RCA adapter included) receives up to 20 volts of input signals, from line-level signals or speaker levels. This means an easy connection to any car audio system - OEM or aftermarket. No need to worry whether the subwoofer system can be connected in your car because it will definitely be connected.
Features that can be activated for signal sensors
MS-Basspro SQ has a long-distance signal editing feature. When activated, this allows MS-Basspro SQ to turn on when the head unit sends the audio signal. This feature is useful in many installation using the factory head unit that may not have a special analog sending cable. Turn-on options are easy to turn off for aftermarket head units that have a special turn-on cable. This is another way in Chich MS-Basspro SQ engineering to work easily with any car audio system.

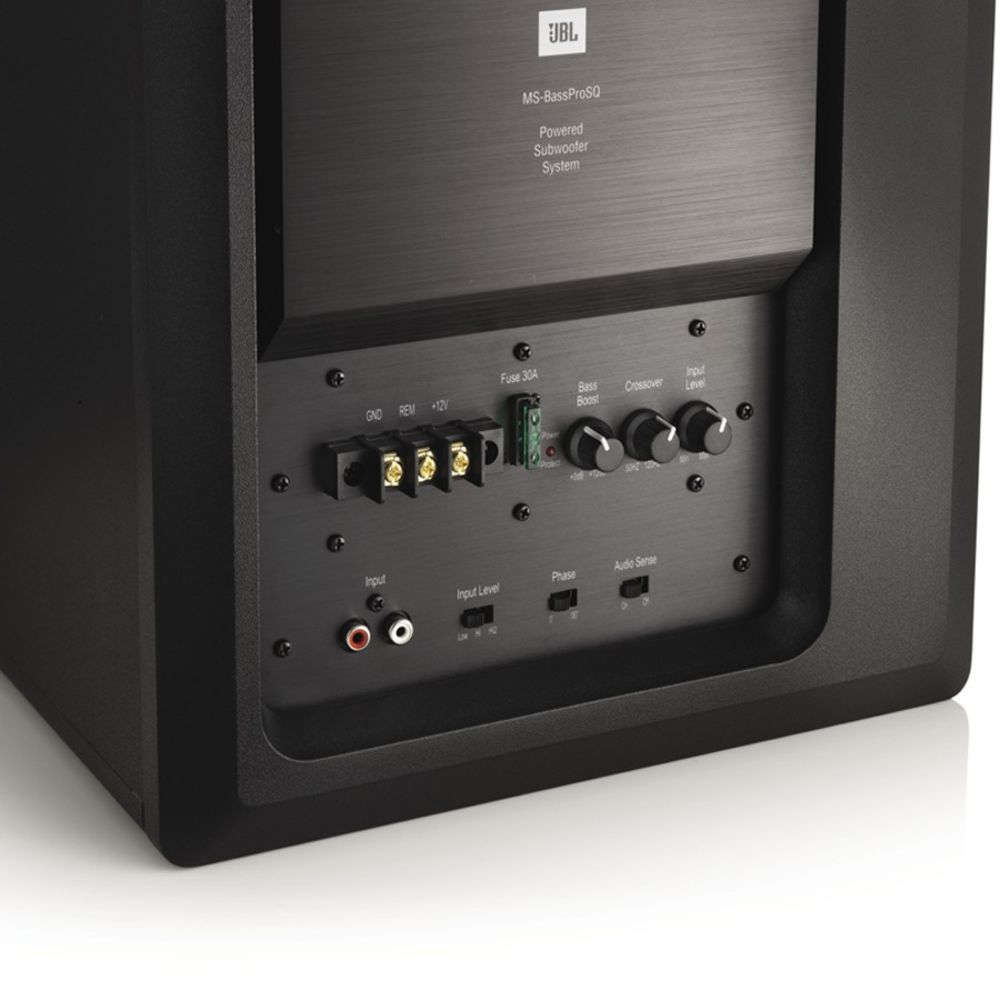

Input level, low pass crossover, bass boost and adjustment to the phase
MS-Basspro SQ includes various adjustments that allow users to adjust the performance of the system to their preferences. The input level control is completely in accordance with the input signal to the built-in amplifier for bass output that is not optimally distorted. Low-pass onboard crossover varies between 50Hz and 120Hz, so it will mingle well with other speakers in the vehicle. Bass Boost (0 to + 12Decibles at 40Hz) and Phase control 0 or 180 degrees help maximize the performance of MS-Basspro SQ, no matter where it is installed in a vehicle no matter what music style you choose.
With a black touch in black and rough pattern on the outside
MS-Basspro SQ has rough finishing and matte-blacks that are elegant integrated with the interior or luggage of any vehicle. MS-Basspro SQ looks great no matter what cargo is accompanying the trip.
With a black hole grid
Hollow metal lattice with black to protect professionally on the diaphragm of square qoofer from damage by shifting the charge. This is also an elegant way to combine the subwoofer into the vehicle without making the subwoofer look not in place.
Wireless bass control options
MS-Basspro SQ works with optional MS-WBC which wirelessly controls the bass level of the driver's seat. The installation is easy and the adjustment is precise. The wireless bass controller provides instant control to combine bass perfectly for each song or the condition of the noise of the road.
Product description |
||
| The ideal powerful subwoofer for all types of your car audio system | : | A good bass in your car doesn't need to be complicated. JBL® MS-Basspro SQ which is compact but strong provides a low level of premium frequency performance which is usually associated with external amplifiers, subwoofer components and large attachments made specifically. This gives the performance of all these components in one complete package and easy to install. MS-Basspro SQ has high efficiency, 300 watts of RMS (450 watt peak), integrated class D amplifiers provide great performance to the 10-inch square (250 millimeter) subwoofer in bass-reflexes using Slipstream port technology. Professional optimization makes MS-Basspro SQ provide extraordinary performance. MS-Basspro SQ includes other special features, namely input level speakers and levels (up to 20 volts) which are easily connected to the existing car audio system; The signal sensing feature that automatically changes the SQ MS-Basspro when the car's audio system is on; and control for the input level adjustment, low-pass crossover frequency and bass boost. There is even a wireless remote (MS-WBC) that controls the bass content of the driver's seat. The result is a low distortion and excellent performance response for all types of music. High efficiency and very simple current at this time from the vehicle electrical system makes SQ MS-Basspro is an ideal upgrading option for any car audio system, especially in this new vehicle in this era. |
General Specifications |
||
| Type | : | Closed |
Audio Specifications |
||
| Frequency Response | : | 20Hz-150Hz |
| Sensitivity | : | 40mV – 20V |
| Power Handling (RMS) | : | 300W |
Size |
||
| Depth (mm) | : | 289 |
| Weight (lb) | : | 32.8 |
| Height (in) | : | 12-3/8 |
| Weight (kg) | : | 14.9 |
| Height (mm) | : | 314 |
| Depth (in) | : | 11-3/8 |
| Width (in) | : | 20-5/8 |
