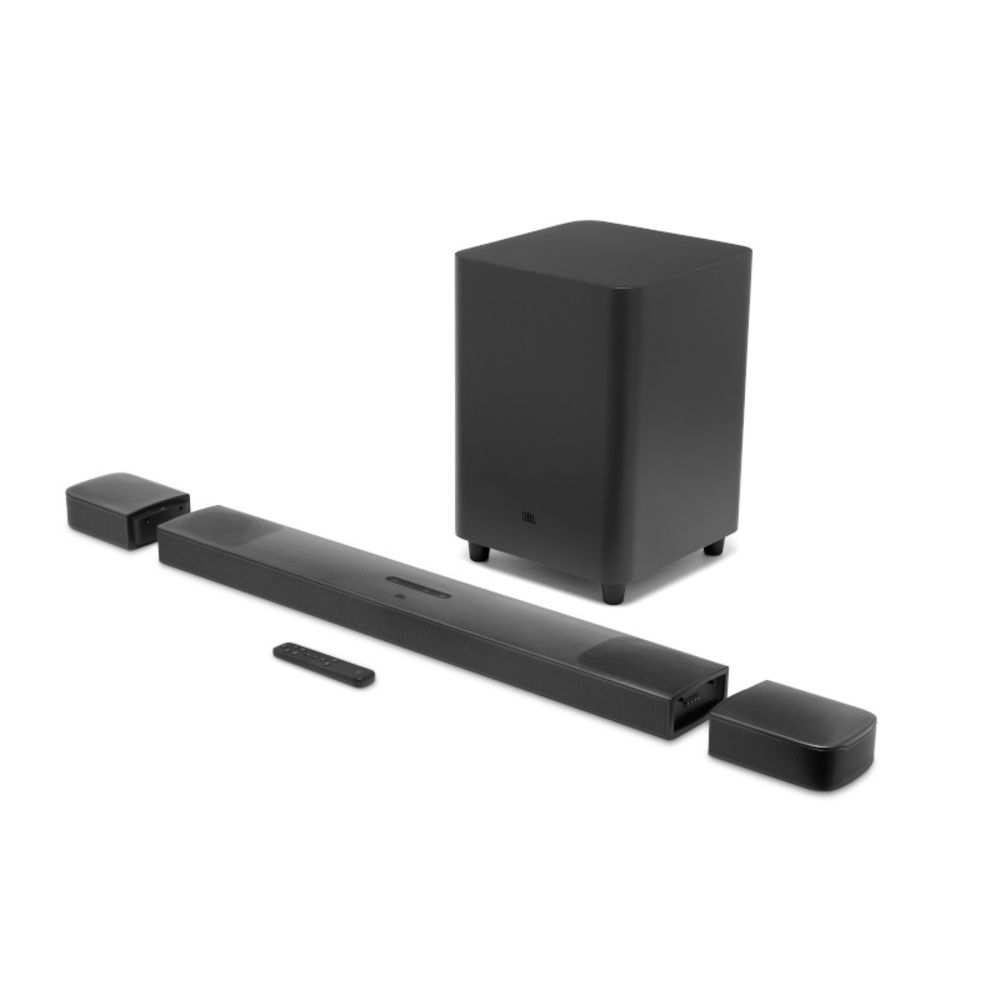

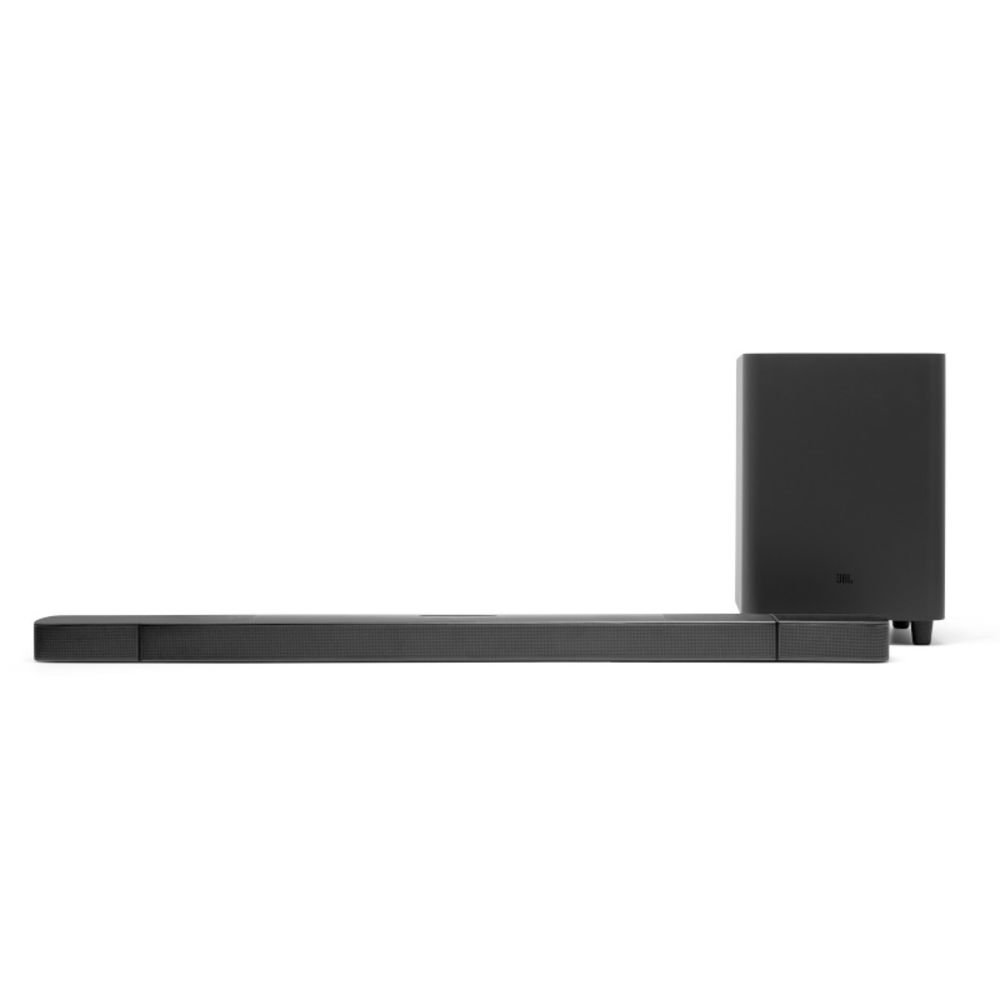

JBL Bar 9.1
Rp9.500.000 Rp14.500.000
SKU: JBLBAR9.1
Categories: Home Audio, Soundbars
SKU: JBLBAR9.1
Categories: Home Audio, Soundbars
Make your viewing or gaming even more exciting with more even sound thanks to four speakers equipped with Dolby Atmos® and DTS:X™. Sound bouncing off the ceiling towards you provides an unmatched 3D surround sound experience.

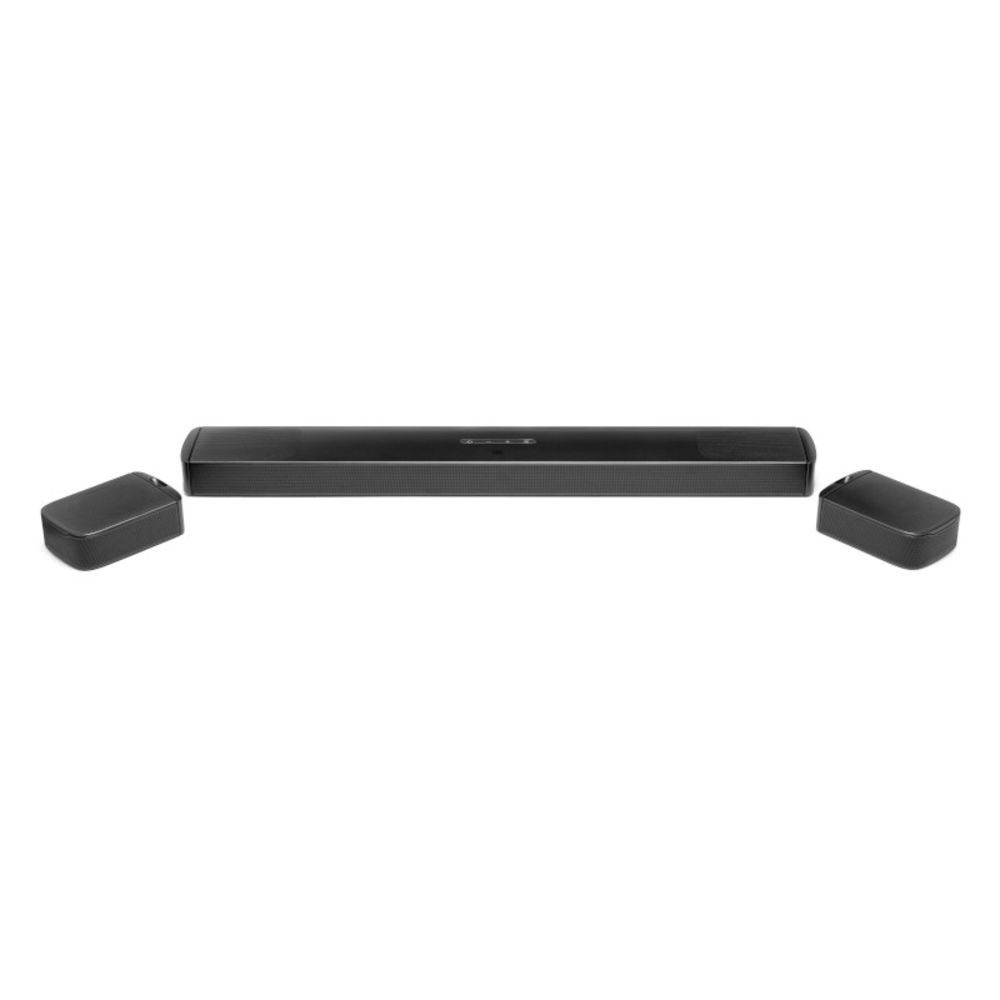

You can feel the sensation of 9.1 surround sound like a cinema right at home by simply installing two removable speakers behind you. The wireless design frees you from the hassle of having to worry about cables or power connections.

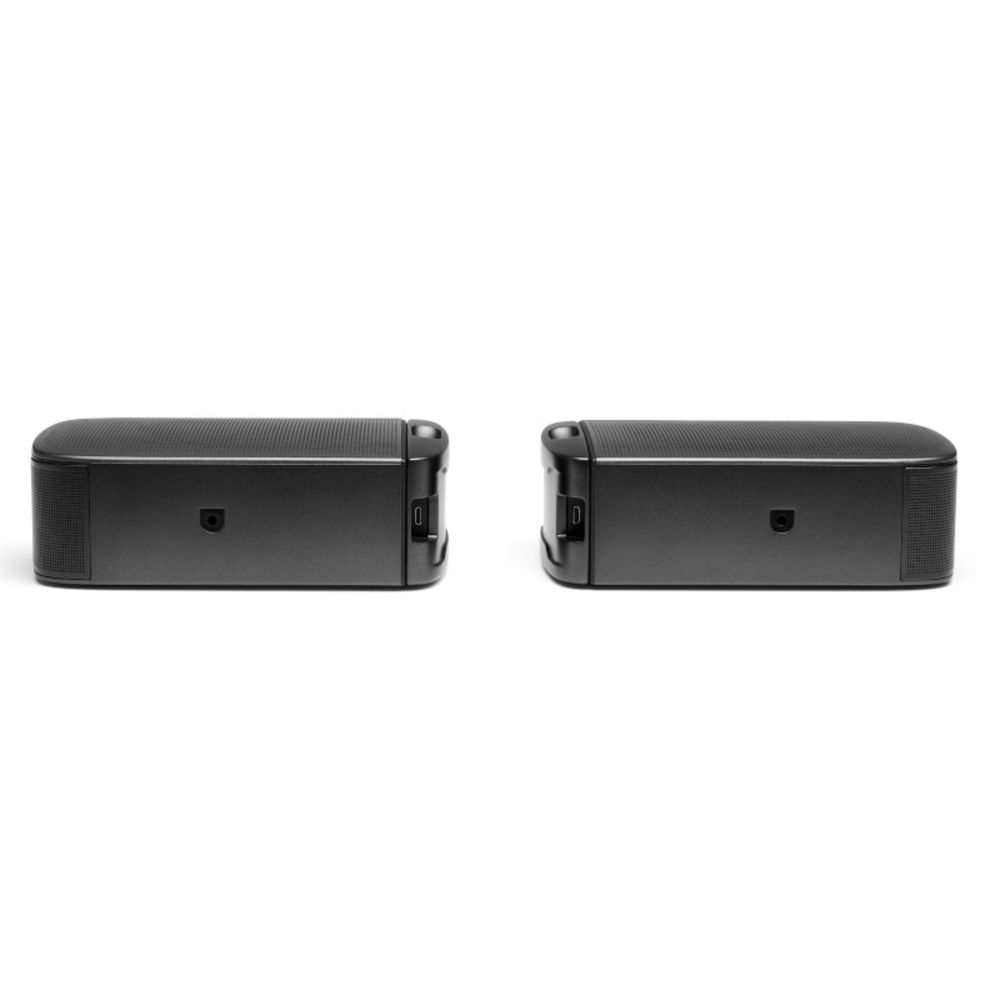

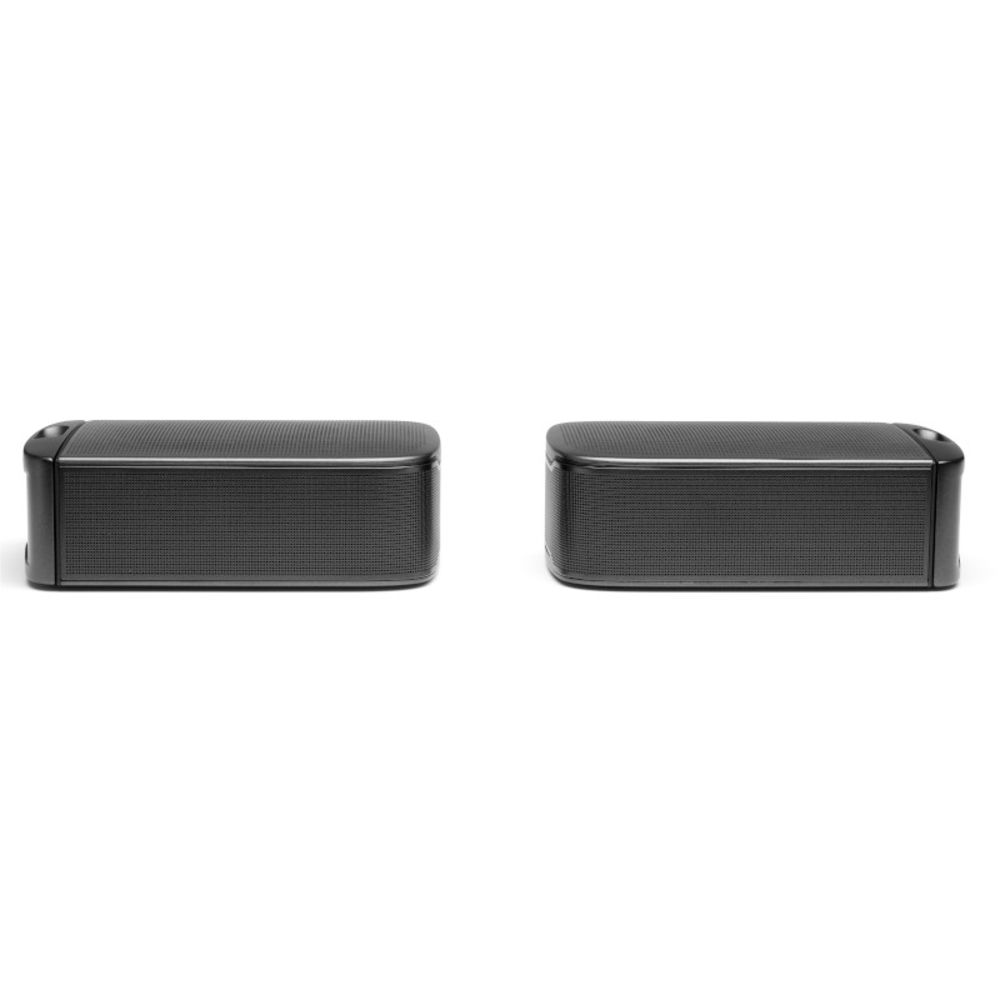

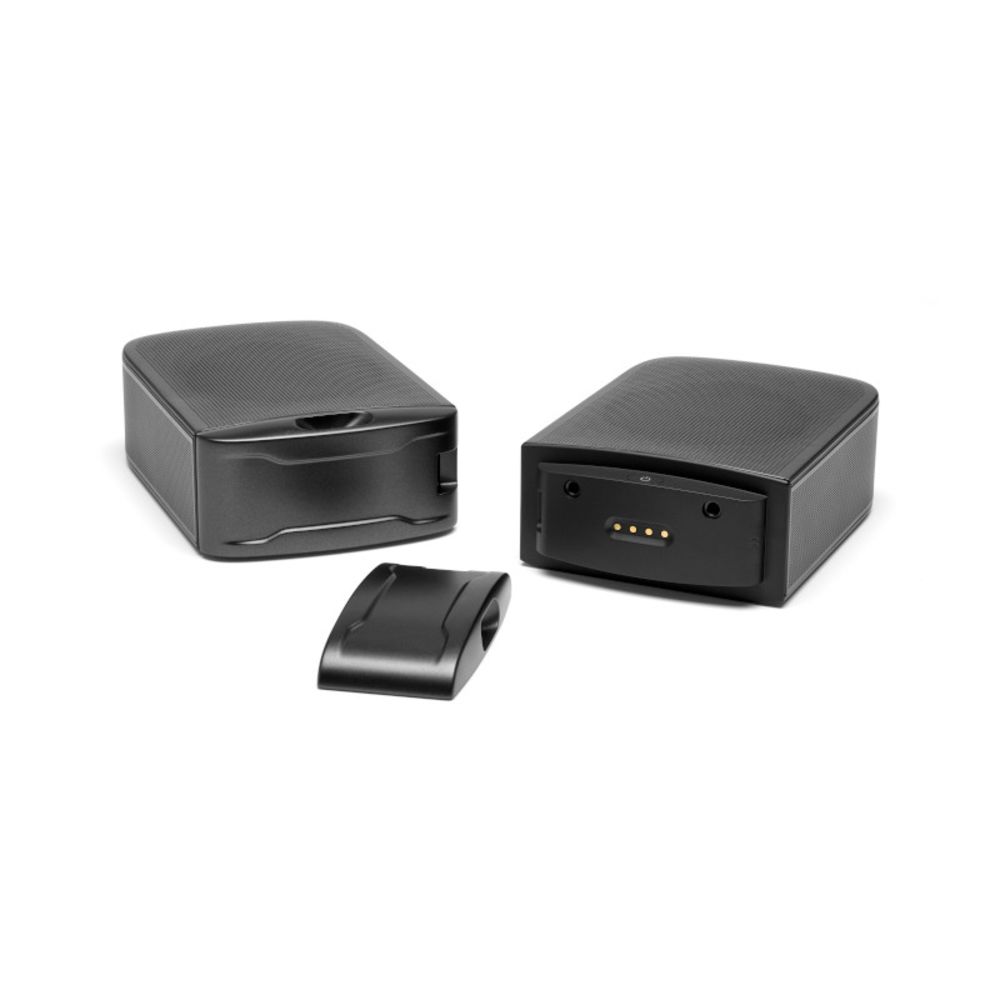

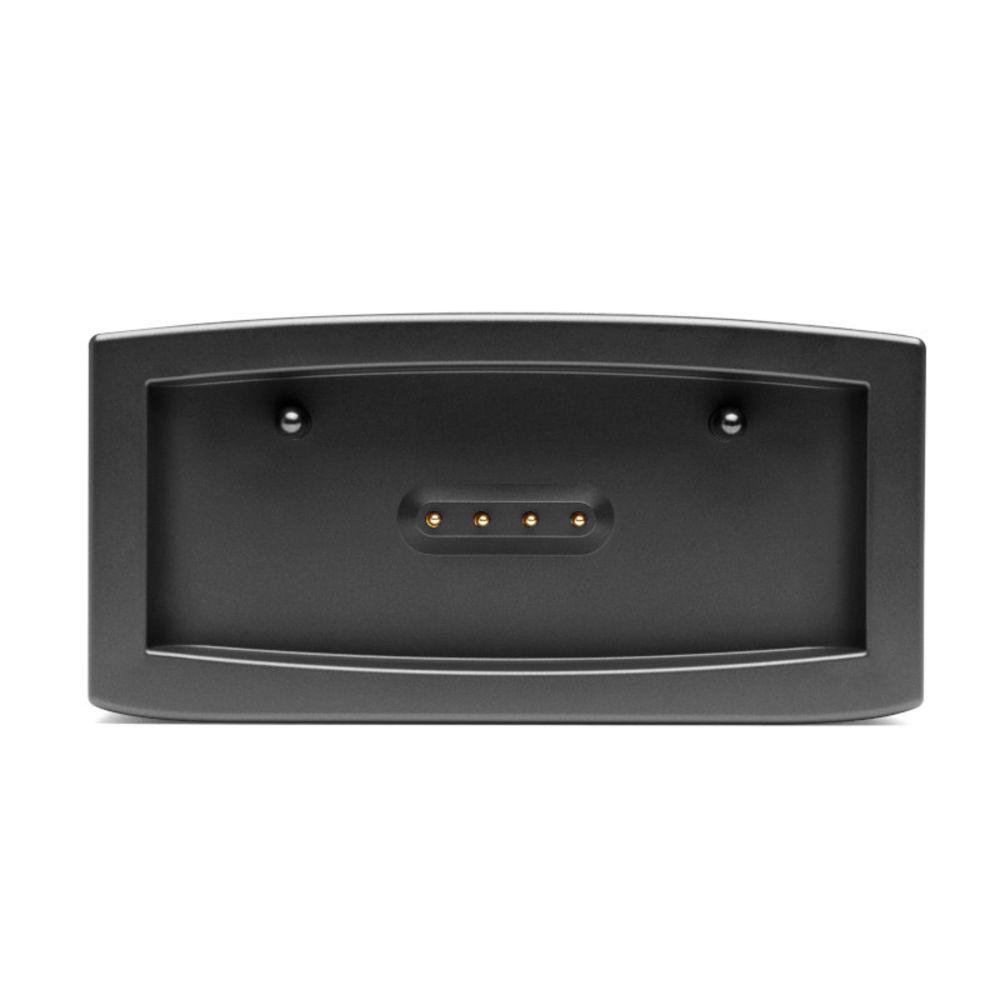

Audio freedom with built-in battery. Two detachable speakers can be placed anywhere in the room and still produce the same great sound. After 10 hours of use, simply plug it into the soundbar to recharge.
General Specifications |
||
Sound system | : | 5.1.4 channels |
Power supply | : | 100–240 V AC, ~50/60 Hz |
Battery charging time | : | 3 hours |
Total speaker power output (Max. @THD 1%) | : | 820 W |
Speaker output power (Max. @THD 1%) | : | 400 W |
Surround speaker output power (Max. @ THD 1%) | : | 2 x 60W |
Subwoofer output power (Max. @THD 1%) | : | 300 W |
Soundbar Transducer | : | 4 _ racetrack drivers +2 _ wide-range upward-firing drivers + 3 _ 0.75” (20mm) tweeters |
Surround Transducer (per section) | : | wide-range upward-firing driver + 0.75” (20mm) tweeter |

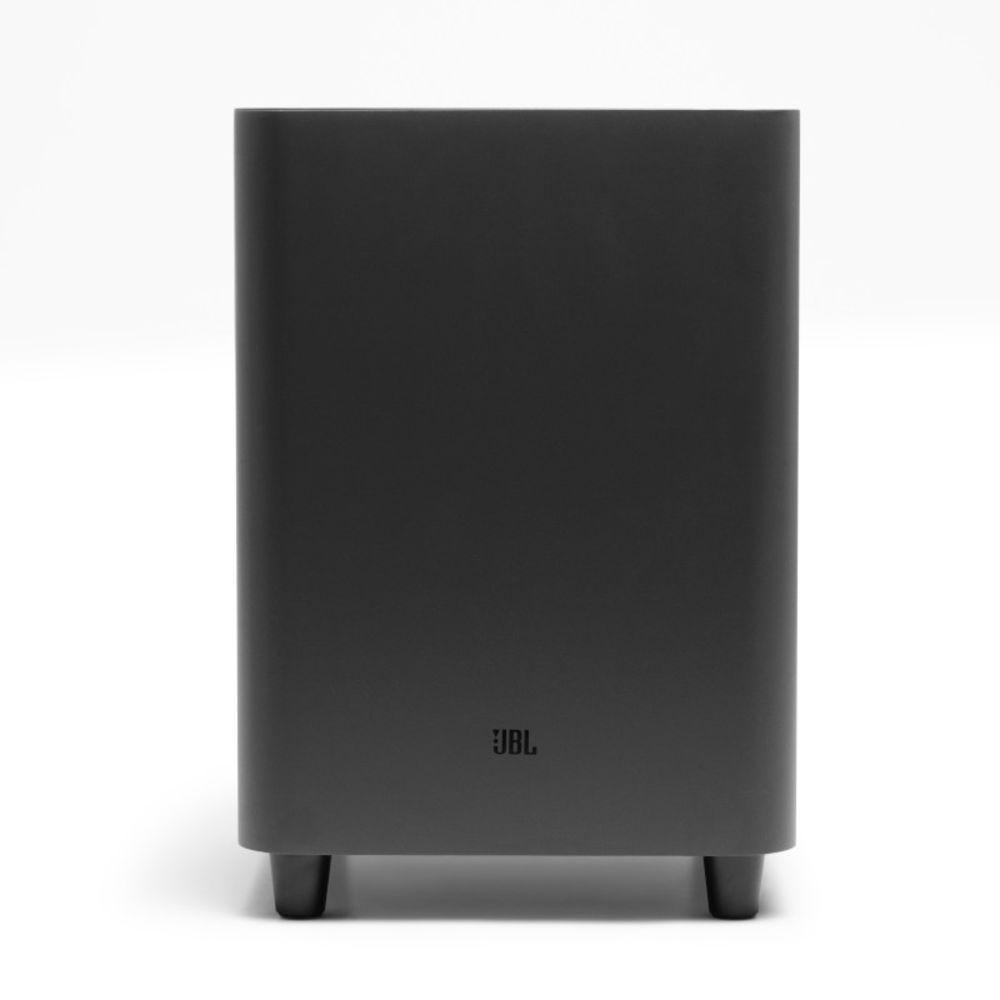

Subwoofer Transducer | : | 10” |
Operating temperature | : | 0°C - 45°C |
305 x 440 x 305 mm/12.0 x 17.3 x 12.0 inches (subwoofer) | : | Yes |
3.64 kg/ 8.0 lb (soundbar) | : | Yes |
0.72 kg x 2/ 1.6 lb x2 (removable surround speakers) | : | Yes |
11.10 kg/ 24.5 lb (subwoofer) | : | Yes |
Standby for Soundbar (when all wireless connections are disabled) < 0.5 W | : | Yes |
Network standby (Soundbar) < 6.0 W | : | Yes |
Network standby (Subwoofer) < 2.0 W | : | Yes |
Time to stand by | : | < 10 minutes |
Audio Specifications |
||
HDMI Video Input | : | 1 |
HDMI Video Output (with enhanced Audio Return Channel, eARC) | : | 1 |
HDMI HDCP version | : | 2.3 |
Maximum SPL | : | 103dB |
Frequency response | : | 34Hz - 20KHz |
Audio input | : | 1 Optical, Bluetooth, Chromecast, AirPlay2, USB |
Dimension Specifications |
||
5G wireless frequency range: 5180.0 ~ 5240.0 MHz, 5725.0 ~ 5825.0 MHz | : | Yes |
5G Max transmit power | : | 13 dBm (EIRP) |
884 x 62 x 120 mm / 34.8 x 2.4 x 4.7 inches (soundbar ) | : | Yes |
173 x 60 x 120 mm/6.8 x 2.4 x 4.7 inches (removable surround speakers, per piece) | : | Yes |
Control and Connection Specifications |
||
Type A | : | USB ports |
USB Ratings | : | 5 V/ 500 mA |
Supported file formats | : | MP3 |
MP3 Codecs | : | MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
MP3 sampling rate | : | 16KHz - 48KHz |
MP3 bit rate | : | 80 kbps - 320 kbps |
(USB playback is only available in the US version. In other versions, USB is for Service only.) | : | Yes |
Bluetooth version | : | 4.2 |
Bluetooth Profl | : | A2DP V1.2, AVRCP V1.5 |
Bluetooth frequency range | : | 2,402–2,480 MHz |
Max transmit power. Bluetooth | : | 13 dBm (EIRP) |
Wi-Fi Network | : | IEEE 802.11 a/b/g/n/ac (2.4 GHz/5 GHz) |
2.4G Wi-Fi frequency range | : | 2412 – 2472 MHz (2.4 GHz ISM Band, US 11 Channels, Europe and other 13 Channels) |
Transmit power Max. 2.4G Wi-Fi | : | 20 dBm (EIRP) |
Modulation Type | : | DBPSK, DQPSK, CCK, QPSK, BPSK, 16QAM, 64QAM |
5G Wi-Fi frequency range: 5.15 - 5.35 GHz, 5.725 - 5.825 GHz | : | Yes |
5G Wi-Fi Max transmit power | : | 22 dBm (EIRP) |
