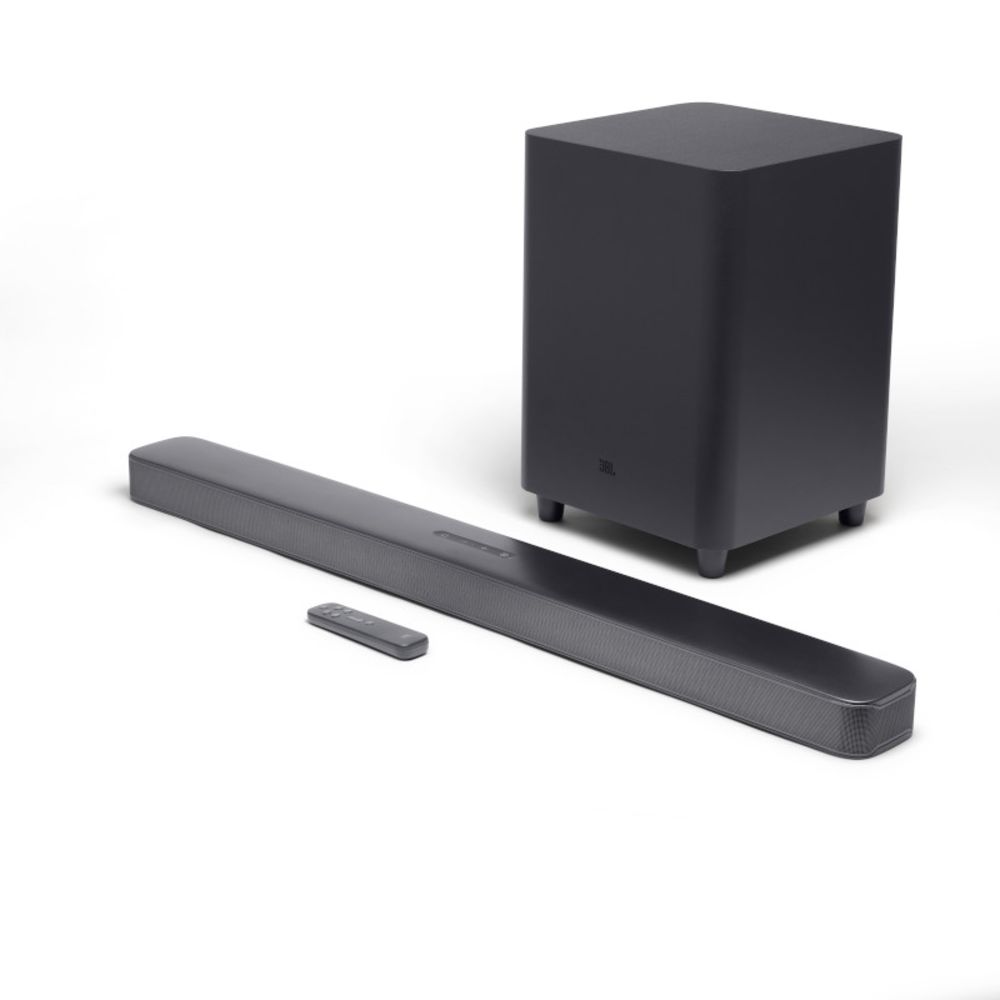

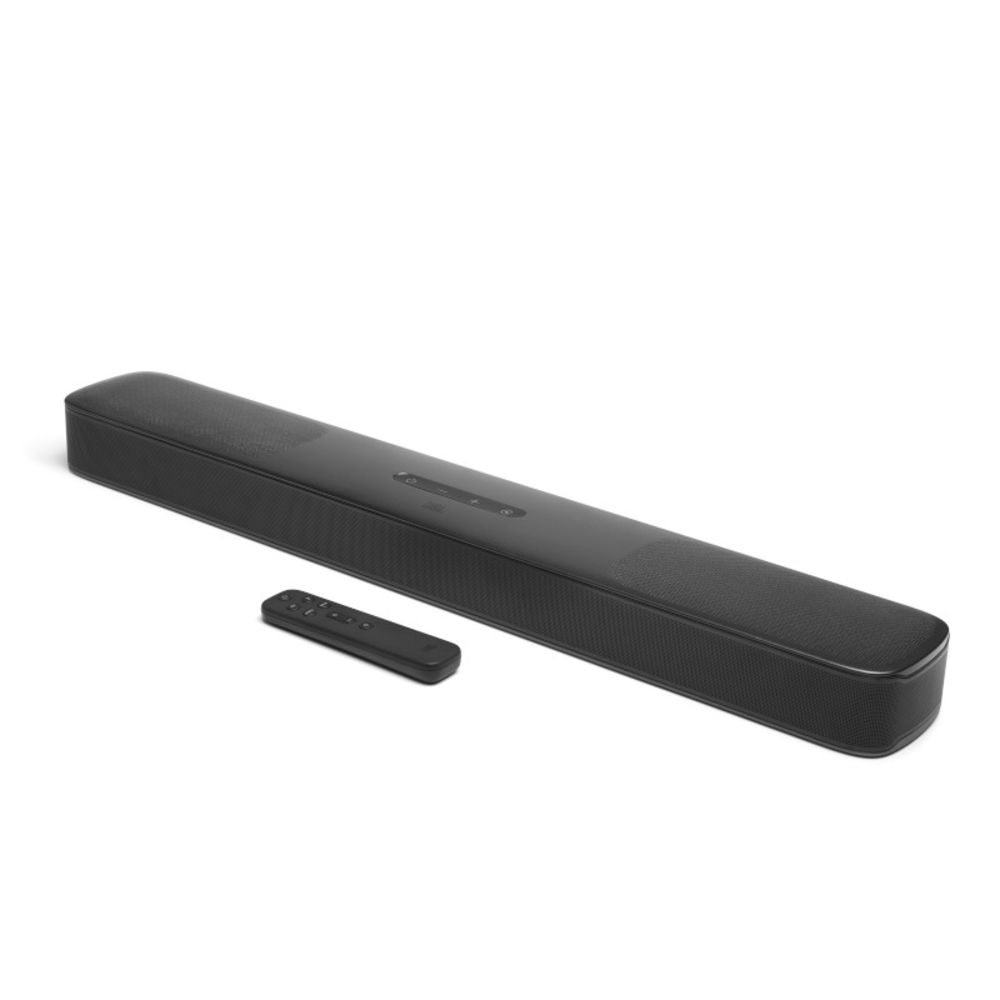

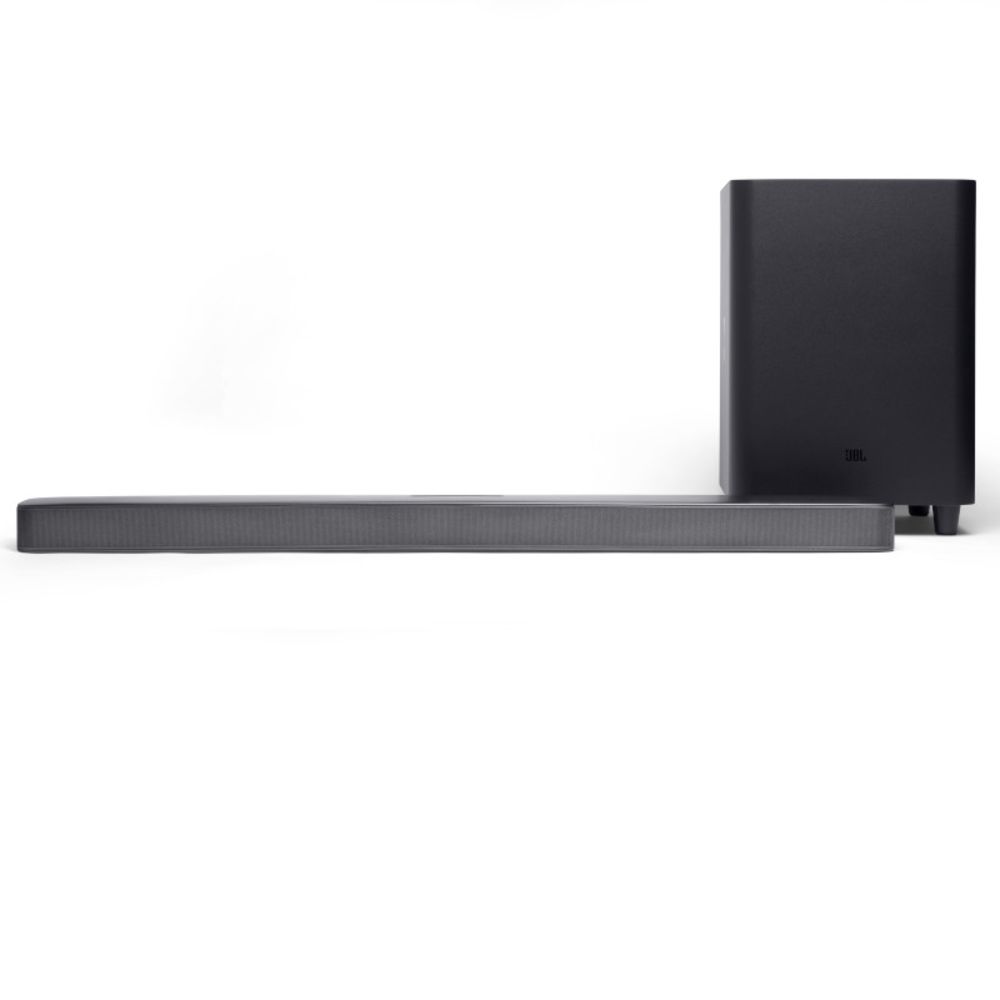

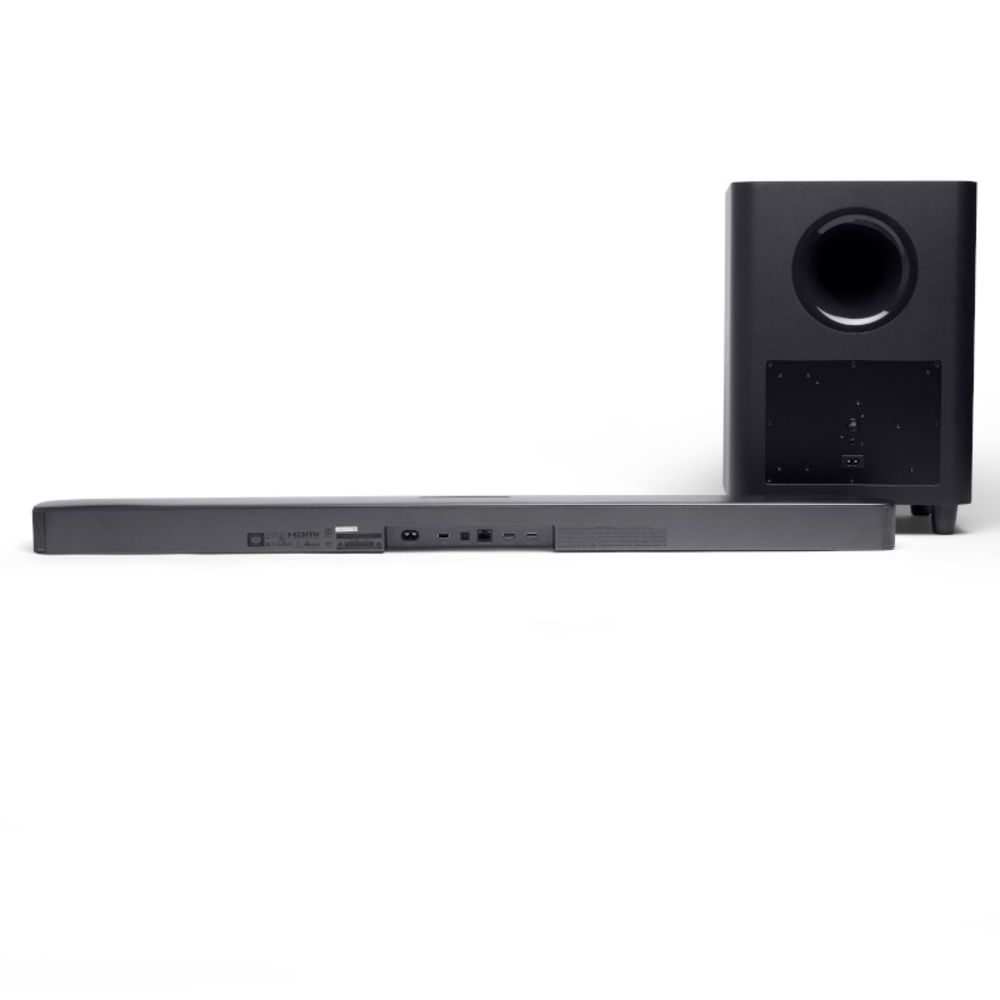

JBL Bar 5.1 Surround
Rp5.500.000
SKU: JBLBAR5.1SURROUND
Categories: Home Audio, Soundbars
SKU: JBLBAR5.1SURROUND
Categories: Home Audio, Soundbars
JBL's MultiBeam™ technology provides a home viewing experience like a cinema. No need for additional speakers or cables.
With a system output power of 550 Watts, the experience of enjoying movies and music is more optimal. Powerful, booming sound that won't disappoint you.

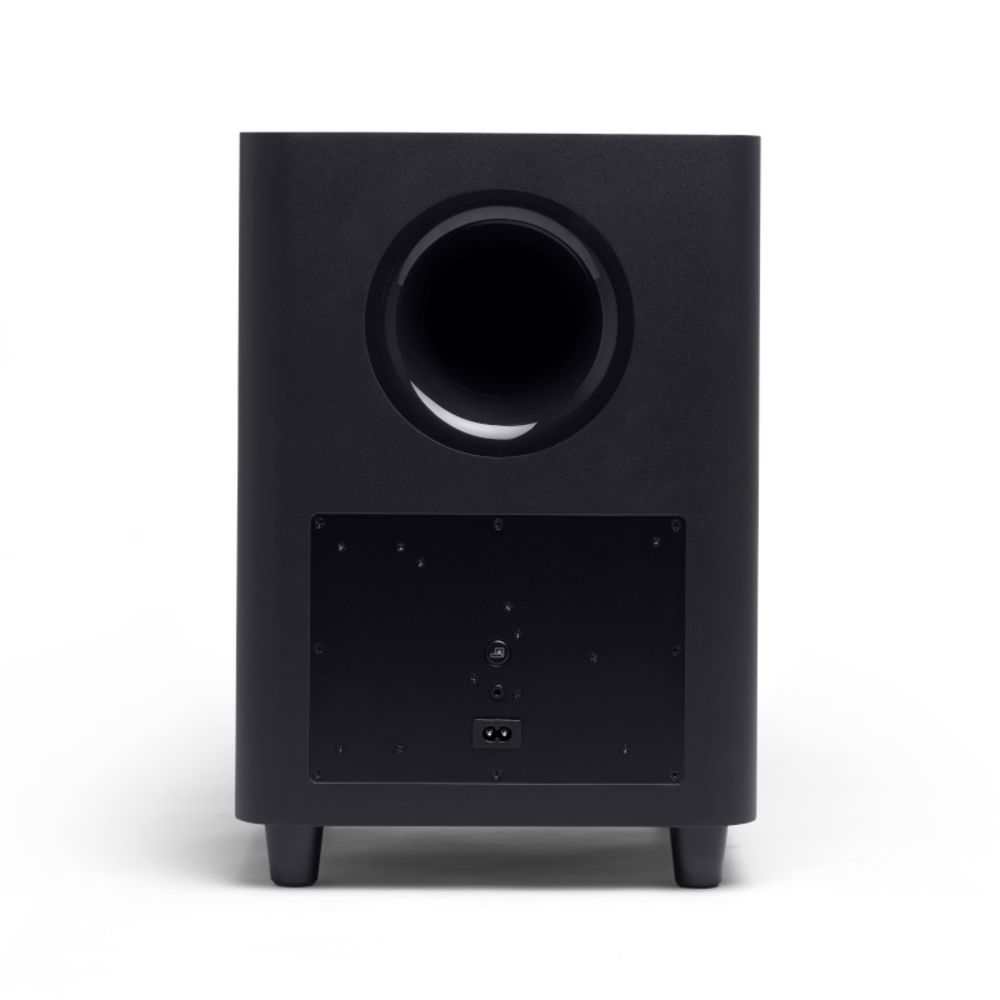

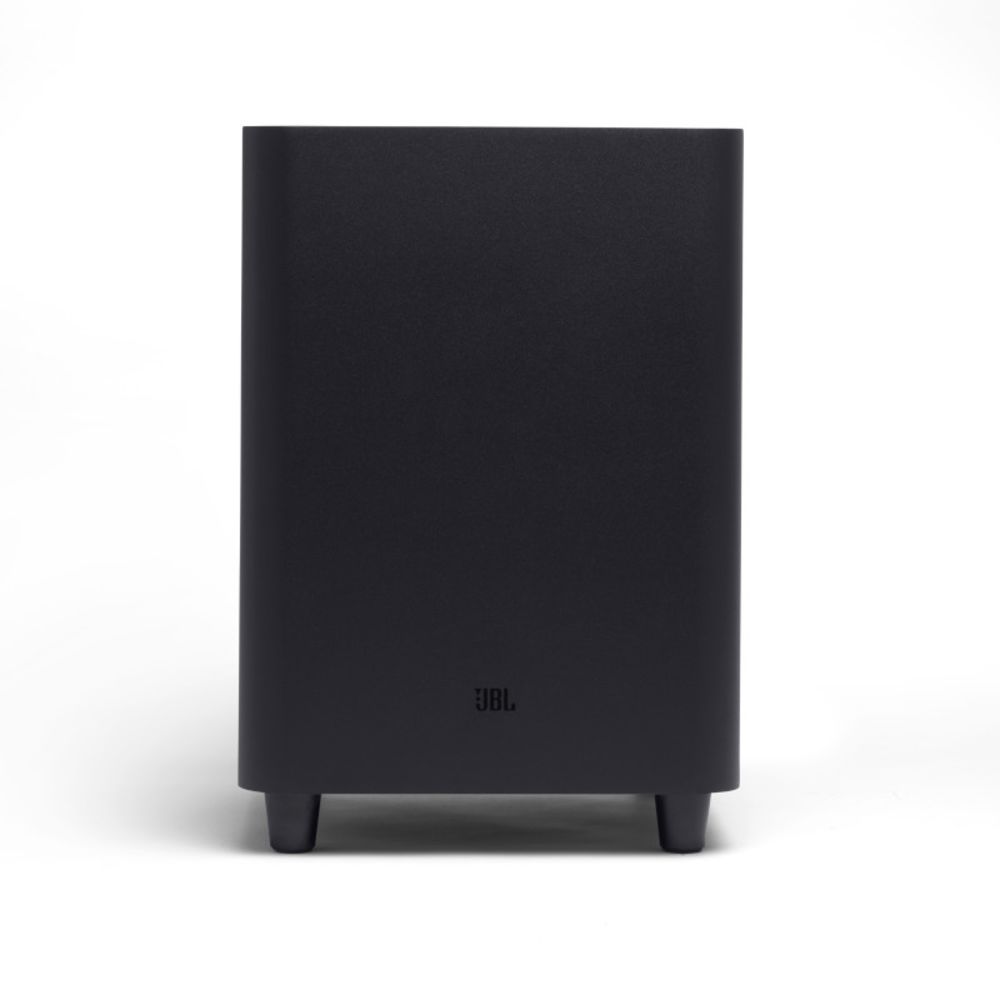

Powerful, punchy bass from the impressive 10'' wireless subwoofer will add excitement to action movies, and make any soundtrack sound amazing.
General Specifications |
||
| Model | : | Bar 5.1 CNTR (Soundbar Unit), BAR 5.1 SUB (Subwoofer Unit) |
| Power supply | : | 100–240 V AC, ~50/60 Hz |
| Soundbar output power (Max. @THD 1%) | : | 5 x 50 W |
| Subwoofer output power (Max. @THD 1%) | : | 300 W |
| Standby power | : | < 0.5 W |
| Standby power in the network | : | < 2.0 W |
| Operating temperature | : | 0°–45° C |
| BAR 5.1 SURROUND complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013. | : | Yes |
| Off Mode (Disabled) | : | There isn't any |
| Standby | : | < 0.5 W |
| Network Alert | : | < 2.0 W |
| Time to stand by | : | < 10 minutes |
Audio Specifications |
||
| Total speaker output power (Max. @THD 1%) | : | 550 W |
| Maximum SPL | : | 103 dB |
| Frequency response | : | 40 Hz–20 kHz |
| Audio input | : | 1 Optical, Bluetooth, USB (USB playback is available in the US version. In other versions, USB is for Service only.) |
| MP3 Codecs | : | MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
| MP3 sample rate | : | 16–48 kHz |
| MP3 Bitrates | : | 80–320 kbps |
Dimension Specifications |
||
| Soundbar Transducer | : | 5 Racetrack drivers 4690" + 2 side-firing tweeters 1.25" |
| Subwoofer Transducer | : | 10" |
| Dimensions (L x H x W) | : | 1018 x 58 x 100 mm / 40” x 2.28” x 3.94” (Soundbar); 305 x 440 x 305 mm / 12” x 17.3” x 12” (Subwoofer) |
| Heavy | : | 2.85 kg (Soundbar); 10.62 kg (Subwoofer) |
Control and Connection Specifications |
||
| Ports (USB) | : | Type A |
| USB Ratings | : | 5 V DC, 0.5 A |
| Supported file formats | : | mp3, wav |
| Bluetooth version | : | 4.2 |
| Bluetooth profile | : | A2DP V1.3, AVRCP V1.5 |
| Bluetooth frequency range | : | 2402–2480 MHz |
| Max transmit power. Bluetooth | : | < 11 dBm (EIRP) |
| Wi-Fi Network | : | IEEE 802.11 a/b/g/n/ac (2.4 GHz/5 GHz) |
| 2.4G Wi-Fi frequency range | : | 2412–2472 MHz (2.4 GHz ISM Band, US 11 Channels, Europe and others 13 Channels) |
| Transmit power Max. 2.4G Wi-Fi | : | < 20dBm |
| 5G Wi-Fi frequency range | : | 5.15–5.35 GHz, 5.725–5.825 GHz |
| 5G Wi-Fi Max transmit power | : | < 22dBm |
| 5G wireless frequency range | : | 5161.35–5245.35 MHz, 5736.35–5820.35 MHz |
| 5G Max transmit power | : | < 9dBm (EIRP) |
| Modulation Type | : | π/4 DQPSK |
General Specifications |
||
| Model | : | Bar 5.1 CNTR (Soundbar Unit), BAR 5.1 SUB (Subwoofer Unit) |
| Power supply | : | 100–240 V AC, ~50/60 Hz |
| Soundbar output power (Max. @THD 1%) | : | 5 x 50 W |
| Subwoofer output power (Max. @THD 1%) | : | 300 W |
| Standby power | : | < 0.5 W |
| Standby power in the network | : | < 2.0 W |
| Operating temperature | : | 0°–45° C |
| BAR 5.1 SURROUND complies with European Commission Regulation (EC) No 1275/2008 and (EU) No 801/2013. | : | Yes |
| Off Mode (Disabled) | : | There isn't any |
| Standby | : | < 0.5 W |
| Network Alert | : | < 2.0 W |
| Time to stand by | : | < 10 minutes |
Audio Specifications |
||
| Total speaker output power (Max. @THD 1%) | : | 550 W |
| Maximum SPL | : | 103 dB |
| Frequency response | : | 40 Hz–20 kHz |
| Audio input | : | 1 Optical, Bluetooth, USB (USB playback is available in the US version. In other versions, USB is for Service only.) |
| MP3 Codecs | : | MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
| MP3 sample rate | : | 16–48 kHz |
| MP3 Bitrates | : | 80–320 kbps |
Dimension Specifications |
||
| Soundbar Transducer | : | 5 Racetrack drivers 4690" + 2 side-firing tweeters 1.25" |
| Subwoofer Transducer | : | 10" |
| Dimensions (L x H x W) | : | 1018 x 58 x 100 mm / 40” x 2.28” x 3.94” (Soundbar); 305 x 440 x 305 mm / 12” x 17.3” x 12” (Subwoofer) |
| Heavy | : | 2.85 kg (Soundbar); 10.62 kg (Subwoofer) |
Control and Connection Specifications |
||
| Ports (USB) | : | Type A |
| USB Ratings | : | 5 V DC, 0.5 A |
| Supported file formats | : | mp3, wav |
| Bluetooth version | : | 4.2 |
| Bluetooth profile | : | A2DP V1.3, AVRCP V1.5 |
| Bluetooth frequency range | : | 2402–2480 MHz |
| Max transmit power. Bluetooth | : | < 11 dBm (EIRP) |
| Wi-Fi Network | : | IEEE 802.11 a/b/g/n/ac (2.4 GHz/5 GHz) |
| 2.4G Wi-Fi frequency range | : | 2412–2472 MHz (2.4 GHz ISM Band, US 11 Channels, Europe and others 13 Channels) |
| Transmit power Max. 2.4G Wi-Fi | : | < 20dBm |
| 5G Wi-Fi frequency range | : | 5.15–5.35 GHz, 5.725–5.825 GHz |
| 5G Wi-Fi Max transmit power | : | < 22dBm |
| 5G wireless frequency range | : | 5161.35–5245.35 MHz, 5736.35–5820.35 MHz |
| 5G Max transmit power | : | < 9dBm (EIRP) |
| Modulation Type | : | π/4 DQPSK |
