JBL 4349
Rp172.000.000

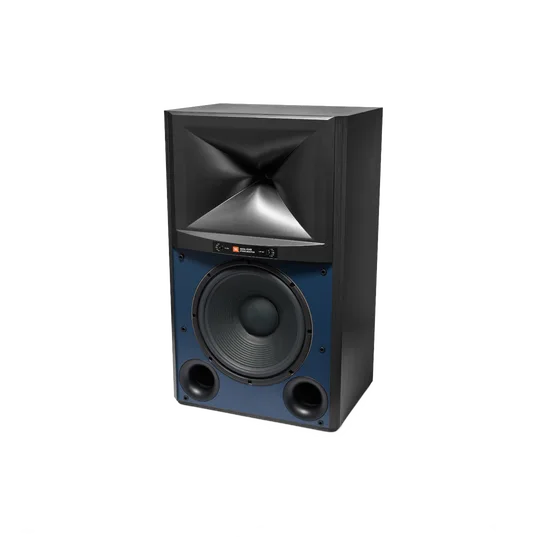

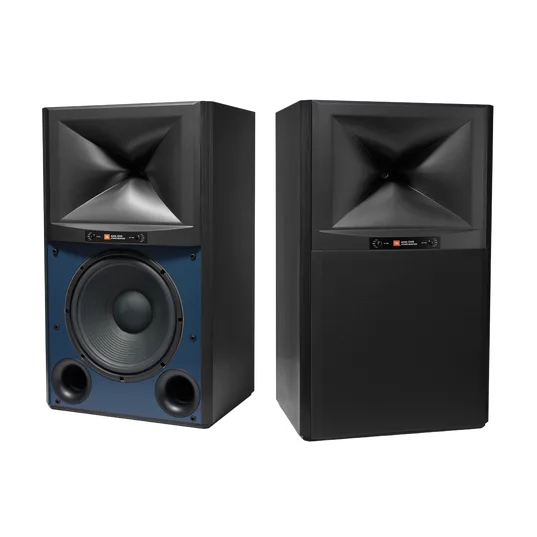

Designed and engineered in JBL’s world-famous acoustic engineering facility in Northridge, California, the 4349 Studio Monitor is a showcase of patented JBL acoustics technologies. This monitor loudspeaker features a 2-way design with patented High-Definition Imaging (HDI™) horn technology, the patented D2415K dual 1.5-inch (38mm) compression driver, and a 12-inch (300mm) cast-frame, Pure-pulp cone woofer for powerful dynamics and incredibly accurate sound reproduction.
Check Store Availability
See product availability at nearby stores.
General Specifications |
||
| Type | : | 2-way monitor loudspeaker |
| Low Frequency Driver | : | 12" (300mm) Pure Pulp cone woofer (JW300PG-8) |
| High Frequency Driver | : | D2415K, 1.5-inch (37.9mm) annular ring, Teonex® diaphragm compression driver with advanced HDI™ geometry horn molded in Sonoglass |
| Recommended Amplifier Power | : | 25 - 200 WRMS |
| Impedance | : | 8 Ohm |
| Loudspeaker Sensitivity | : | 91 dB/2.83V/1m |
| Frequency Response | : | 32 Hz - 25 kHz (-6 dB) |
| Coverage Angle, -6 dB @ 20kHz | : | 80 x 70 Degrees (Hor x Vert) |
| Coverage Angle, -6 dB @ 10kHz | : | 100 x 100 Degrees (Hor x Vert) |
| Crossover Frequency | : | 1.5 kHz |
| Enclosure Type | : | V-braced front-ported cabinet |
| Grille Feature | : | Monitor style to match horn mating features, supplied in dark blue (with walnut cabinet) and black (with black cabinet) |
| HF Tone Control | : | -1 dB to +1 dB in 0.5 dB increments from 1.5 kHz to 6 kHz |
| UHF Tone Control | : | -1 dB to +1 dB in 0.5 dB increments from 5 kHz on up |
| Input Type | : | Dual sets of gold-plated binding posts with shorting straps |
| Warranty | : | 5 Years |
| Matching stand | : | JS-120 |
Dimensions |
||
| Product Weight | : | 83 lb (37.7 kg) |
| Dimensions with grille grille thickness is 1-inch (25.4mm) | : | 29" H x 17.5" W x 12.5" D (736.6mm x 444.5mm x 317.5mm) Note |
